    Home » Products » Filling And Packaging Lines » Inspection Belt Machine

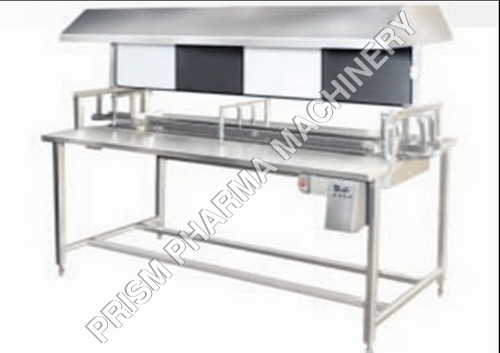

    Inspection Belt Machine

    Inspection Belt Machine
    Inspection Belt Machine
    Send Inquiry
    Product Code : 109
    Product Description

    We are successfully meeting the requirements of our clients by offering a wide array of Inspection Belt Machine. It is manufactured by our experts utilizing quality tested materials. Further, this machine is tested by our quality inspectors to confirm a defect free product delivery at our customer’s end. Available in various specifications, this Inspection Belt Machine is demanded for use in pharmaceutical, chemical and laboratories.

    Features:



    • Robust design
    • Excellent performance
    • Long service life

    • Design as per stringent cGMP requirements.
    • Made from SS 304 quality.
    • Food grade belt having width 300 mm
    • Total eight seated (4 x 2) - Two sided.
    • Direct gear drive.
    • PVC black & white board as per GMP norms.
    • Adjustable height of conveyor belt, to align with other machine of the line
    • Self-alignment bearing for easy maintenance.
    • Rigid Vibration free Construction for trouble free performance.

    Optional Features:

    • AC Frequency drive with variable speed.
    • Length can make as per customer requirement.
    • Flame proof Electricals.

    Technical Specification:

    Model PVBI-120
    Direction of Movement Left to Right
    Output * Up to 120 Containers / minute
    Input specification IV PLASTIC BOTTLE
    Number of operator 4x2 = 8 Nos.  Two side seated
    Belt width 300 mm
    Plat form width 300 mm both side of belt
    Seed Variable by A C Frequency drive
    Power Characteristics** 0.5 HP/220 V/50 Hz
    Height of Conveyor** 860 mm to 910 mm
    Machine Dimensions** 2440 mm (L) x 1000 mm (W) x 1525 mm (H)
    Case dimensions 2750 mm (L) x 1300 mm (W) x 1750 mm (H)
    Net weight 325 Kg.
    Gross Weight 525 Kg. Approx.
