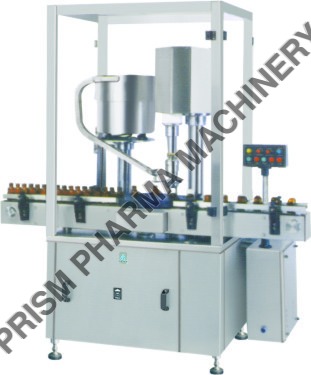

Send InquiryAutomatic Screw Cap Sealing Machine - Single Head
Product Code : 40
Brand Name : Prism
Price And Quantity
Product Specifications
- Material
- Stainless Steel
- Capacity
- 30-400 Kg/hr
- Voltage
- 220-410 Watt (w)
Product Description
Application & Process:
With excellent automatic operation, our screw cap sealing machine is effective in sealing of bottles. It is applicable in pharmaceuticals, food & beverages, agrochemicals, and other industries. The machine is designed to be compact, multipurpose and rugged. It has stainless steel construction with matt finish. The system comprises automatic conveyer belt, single head screw capping unit and pick & place cap feeding unit. Filled bottle moves automatically toward the capping head, and during the move picks cap from the feeding unit. With movement to cap to bottle sealing, the capping head moves up and down. After sealing, the bottles are moved for further process.
Key Features:
With excellent automatic operation, our screw cap sealing machine is effective in sealing of bottles. It is applicable in pharmaceuticals, food & beverages, agrochemicals, and other industries. The machine is designed to be compact, multipurpose and rugged. It has stainless steel construction with matt finish. The system comprises automatic conveyer belt, single head screw capping unit and pick & place cap feeding unit. Filled bottle moves automatically toward the capping head, and during the move picks cap from the feeding unit. With movement to cap to bottle sealing, the capping head moves up and down. After sealing, the bottles are moved for further process.
Key Features:
- Innovative design for effective lower output screw capping
- Individual motor adjusts conveyor and star wheel
- Pneumatic mechanism for pick & place of caps
- Capping head with adjustable torque
- No requirement of container & cap system
- Low noise level & reduced power consumptions
- Easy, quick setting with adjustable bottle height gauge
- Conveyor belt with adjustable height
- Synchronous A/C drives, great for conveyor, star wheel and capping bowl
- UHMW-PE guide profile is self-lubricating, ensures low friction, noiseless & smooth conveying
| Model | PASRCS-60 | |
| Output/Hour* | 1000 to 3000 Bottles | |
| Direction of Movement | Left to Right | |
| No. Of Sealing Head | 1 Nos. | |
| Power** Consumption | Main Motor | 1 HP / 415 Volts / 50Hz |
| Cap Feeding Bowl | 300 Watt | |
| Height of Conveyor** | 800 mm to 850 mm adjustable. | |
